Product Summary
The LQW1608A10NJ00T1M00-03 consists of air-core chip coil using a miniature alumina core. The tight inductance tolerance (± 0.2nH, ± 2%) is available due to Murata’s original winding technology. The LQW1608A10NJ00T1M00-03 has high Q value and high self resonant frequency in high frequency range. It is suitable for high frequency circuits which are used in telecommunication equipment.
Parametrics
Specifications: (1)Nominal Value(nH): 10; (2)Tolerance: ± 5% (± 2%); (3)Test Frequency (MHz): 100; (4)DC Resistance(Ωmax.): 100; (5)Selfresonant Frequency(MHz min.): 0.11; (6)Allowable Current(mA): 6000; (7)Operating Temp. Range: 650.
Features
Features: (1)Horizontal winding structure enables tight inductance tolerance (T0.2nH, T2%). Stable circuit operation is; (2)possible; (3)Broad range of inductance (3.9nH to 220nH); (4)The subminiature dimensions (1.6Z0.8mm) allow high density mounting.; (5)The high self resonant frequency realizes high-Q value and stable inductance at high frequency.; (6)Low DC resistance design is ideal for low loss, high output and low power consumption.; (7)Resin-coated surface enables excellent mounting.

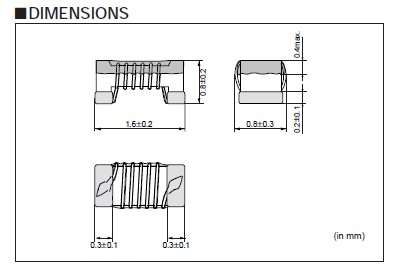

Diagrams
 |
