Product Summary
The SD300N is a standard recovery diode. The applications of it are Converters, Power supplies, Machine tool controls, High power drives, Medium traction applications.
Parametrics
SD300N absolute maximum ratings: (1)IF(AV): 380A, @ TC:100℃; (2)IF(RMS):595A; (3)IFSM: @ 50Hz:6050A, @ 60Hz:6335A; (4)I2t: @ 50Hz:183KA2s, @ 60Hz:167KA2s; (5)VRRM range:1600V to 2000V; (6)TJ:- 40℃ to 180℃.
Features
SD300N features: (1)Wide current range; (2)High voltage ratings up to 3200V; (3)High surge current capabilities; (4)Stud cathode and stud anode version; (5)Standard JEDEC types.

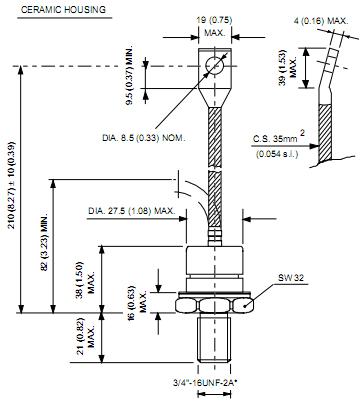

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SD300N |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SD300N/R |
Other |
|
Data Sheet |
Negotiable |
|
||||
