Product Summary

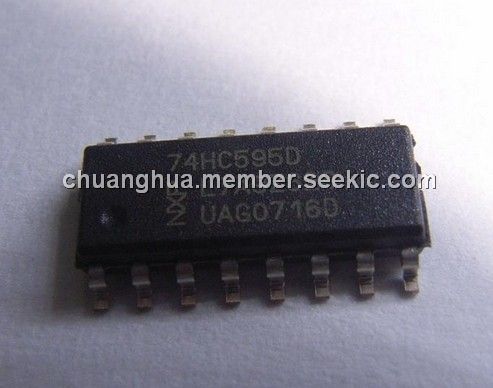

The 74HC595D is a high-speed Si-gate CMOS device and is a pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC595D is an 8-stage serial shift register with a storage register and 3-state outputs. The shift register and storage register have separate clocks.
Parametrics
Absolute maximum ratings: (1)supply voltage:-0.5V to +7.0V; (2)input diode current(VI<-0.5V to VI>VCC+0.5V): ±20 mA; (3)output diode current(VO<-0.5V to VO>VCC+0.5V): ±20 mA; (4)VCC or GND current: ±70 mA; (5)storage temperature: -65℃ +150℃; (6)power dissipation(Tamb =-40℃ to +125℃): 500 mW; (7)output source or sink current at VO = -0.5 V to VCC + 0.5 V: Q7‘ standard output: ±25 mA; Qn bus driver outputs: ±35 mA.
Features
Features: (1)8-bit serial input; (2)8-bit serial or parallel output; (3)Storage register with 3-state outputs; (4)Shift register with direct clear; (5)100 MHz (typical) shift out frequency; (6)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V.

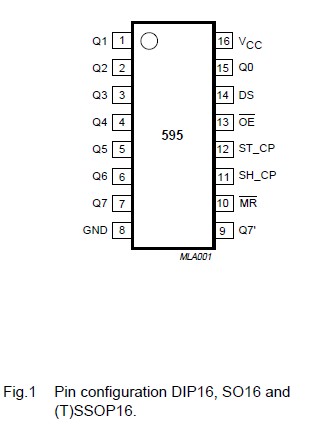

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC595D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC595D,112 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
|
74HC595D,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
|
74HC595DB,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG |
Data Sheet |
|
|
||||||||||||
|
74HC595DB,112 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REGISTER |
Data Sheet |
|
|
||||||||||||
|
74HC595DB |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC595DTR2G |
ON Semiconductor |
Counter Shift Registers SHIFT RGSTR 3-STATE |
Data Sheet |
|
|
||||||||||||
 |
74HC595DR2G |
ON Semiconductor |
Counter Shift Registers SHIFT RGSTR 3-STATE |
Data Sheet |
|
|
||||||||||||
